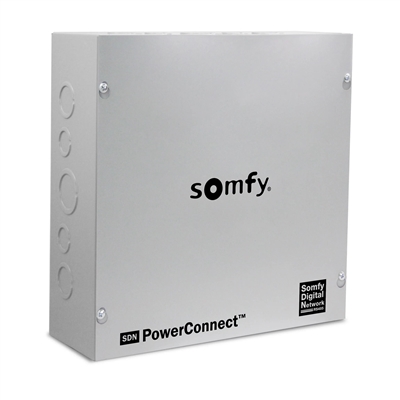

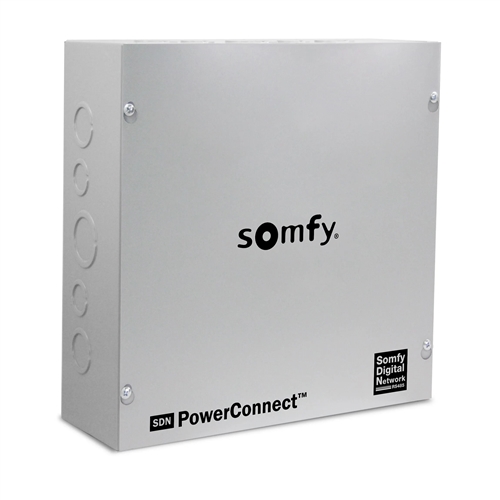

Somfy Power Panel 24v for Somfy Digital Network 1871026

1871026 Somfy 24v Power Panel for Somfy Digital Network

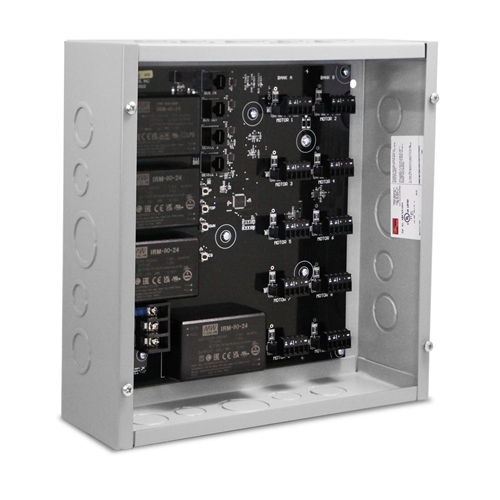

The Power Panel is an SDN bus distribution component used to add 10 isolated motor ports and two isolated device ports to an SDN bus segment. The isolated motor ports support up to 240 feet of power and data wiring to individual low voltage intelligent motors. The in-wall or on-wall mountable enclosure offers separated line and low voltage areas for ease of installation. Smaller form factor – approx. 50% smaller volume. Sequence button allows for testing of motor wiring directly at the power panel. System status LEDs monitor Bus power, communication, and end-of-line notification. Supplies power to Device Ports from internal power supplies. Miswire protection. Automatic segment termination. Replaces all previous motor power panels for SDN motors. Simplified Installation The in-wall or on-wall mountable enclosure offers separated line- and low-voltage areas for ease of installation. Front cover includes keyed lock handles. Perfect for Multiple Applications Could be used in small SDN systems with two control devices and 10 individual motors as a stand alone solution. cULus.
