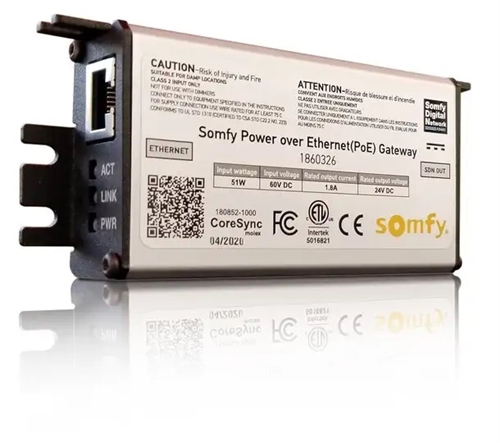

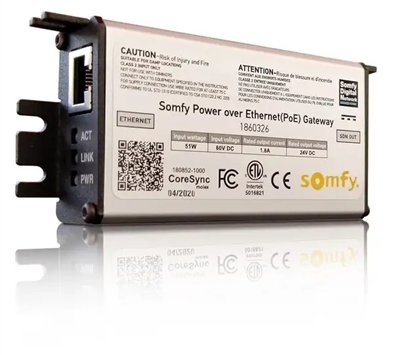

1860326 Somfy SDN Power over Ethernet (PoE) Gateway

The SDN Power over Ethernet (PoE) Gateway is a low-voltage power distribution and network-connected module that utilizes PoE (Power over Ethernet) technology to power and control the Somfy 24v RS485 motorization offer for shades and draperies. The SDN PoE Gateway delivers up to 51W of power and Ethernet-based connectivity. The device supports both Somfy Synergy API and CoAP Digital Building API, and is compatible with Molex Transcend Network Connected System. The Gateway is powered and connected via standard Cat 5e/6 UTP cable and controls Somfy Digital Network (SDN) devices

Delivers up to 51W of power and ethernet-based connectivity. Supports both Somfy Synergy API and CoAP Digital Building API compatible with Molex Transcend Network Connected System. Powered and connected via standard Cat 5e/6 UTP cable and controls Somfy Digital Network (SDN) devices. Control up to 4 Low-voltage RS485 motors from an SDN PoE Gateway. When operating motors in a group, motors will cascade individually. Aligned operation available with Sonesse 30 RS485 DC maximum of 2 motors. Total wiring between SDN PoE Gateway and all motors should not exceed 240 ft. when using SDN Low-Voltage Motor Cable. Gateway connects to SDN Low-Voltage Motor Cable using a 4 pin to Weidmueller adaptor cable included with the Somfy PoE Gateway Kit 1870445.
